Companion Veterinary X-Ray Imaging Solutions

---

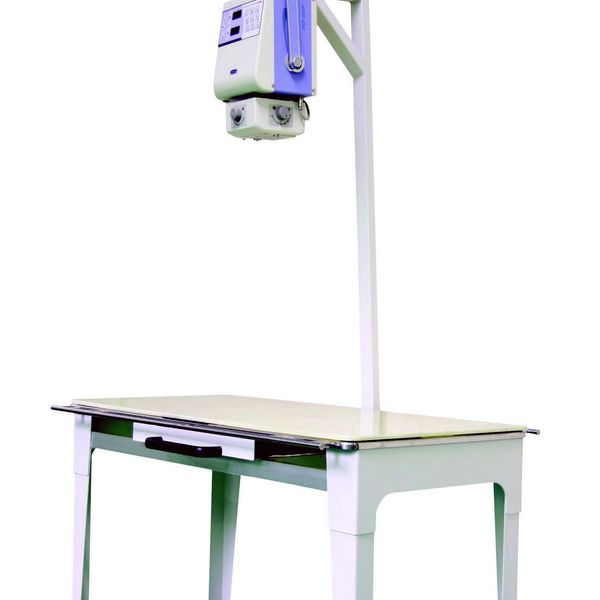

The Poskom VT20 Veterinary X-Ray System is a leader in veterinary imaging designed with user convenience in mind, ensuring that workflow is easily accessible with minimal setup and maintenance required.This fixed veterinary x-ray machine  is the perfect diagnostic tool for any animal clinic or hospital.

Fits into the smallest of area's. UPGRADE to a digital xray machine!

Generator:

PXP-40HF w/ APR's

40-100kV, 1kV steps

100kV/35mA

0.4-100mAs, 25 steps

Table

Stationary top

Bucky moves with tube stand

Vertical SID fixed 40"

Table dimensions: 28" H x 48"L x 28" D

• Plug and Play! No Special Power Needed to Operate. Uses Standard Wall Outlet
• Easy to Move Around Any Room to Clean or Relocate
• Lubrication-Free Sliding System Allows the Bucky and Tube Stand to Be Easily Moved Along the Length of the Table.
• New Generation of Wired and Wireless DR Detectors
• Simple, Easy to Use Digital X-ray Software
• Generator and DR Can Easily Be Removed and Taken Into the Field for Equine X-ray or Bovine Applications
• Upgrade it to a digital xray machine

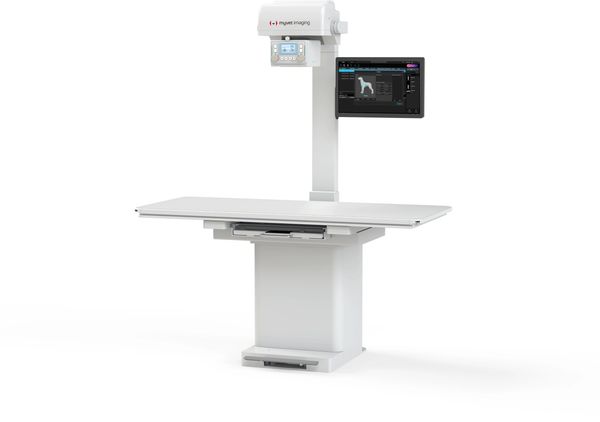

MyVet 32+ table is a compact and integrated veterinary x-ray machine x-ray that only requires a 120V Outlet. The 32+, with a small working footprint, 4-way floating table and 17 x 17 inch Cesium Iodide flat panel detector, provides a veterinary practitioner a powerful digital xray machine for all of their imaging needs.

A 32kW generator and robust tube stand mounted directly to the table that houses the generator offers the most space-saving solution for any clinical environment. Spring-activated locks quietly release the four-way floating tabletop that helps calm animals as they are positioned on the table.

• Premium collimator with exposure preset and hands-free light control
• 4-way floating table for easy animal positioning
• Compact design to optimizes placement
• Easy to install and service
• No special power required

MyVet Pan i2D™ is the world's first veterinary specialized mobile panoramic dental x-ray system.

MyVet Pan i2D uses tomography to take a panoramic image of small animal's full mouth within a minute. Animal size selection switch and a positioning laser light guides practioners right position the patient easy and quickly. The ergonomic table design delivers comfort workflow to practioners by easy positioning with less preparation. The entire unit is mobile and unlike other medical system, a practioner can use it instantly without any special installation.

Actual scan time is approximately 20 seconds for full mouth. Panoramic images provide more coverage for bone defects and jaw lesions.

Our panoramic system does not require any intraoral sensor that has to be wrapped by a cover at every exam. You need to simply clean the bed after using the system and it helps prevent your patient from infection and keep the clinical environment clean.

EzRay vet™ cart, the mobile dental x-ray cart system expedites your veterinary dental treatment procedure and provides trouble-free workflow by minimizing anesthesia risks or restraint injuries.

• Maximum exposure time reduced by 75% to animal and user while maintaining optimal image quality.
• Smart angulation exposure setting control maintains consistent image density whenever tube head is angled by automatically adjusting exposure setting.
• Image quality maximized with narrow, focused beams directed at a 0.4mm focal spot.

• Compact, lightweight, one-hand control tube head and Non-drift head.
• Preset technique per animal size – Simple dialing and shoot.
• Like turning on a light bulb, No warm-up time required. No waiting time for next shoot.

• Easy to position tube head with one-hand control results in reduced time.
• Lower exposure levels required for animal during an dental imaging procedure.

The EzRay Air Vet is a lightweight portable x-ray device designed for easy handling and stable positioning for optimal image quality on your intra-oral x-rays.

• Weight innovation with CNT (Carbon Nano Technology)
• 30% lighter than other handheld units
• Lower dose
• Double scatter shield design for operator safety
• Lower cool down times
• Faster workflow, no warm-up time

• INTERNAL SHIELDING: The internal radiation shielding is perfectly designed to protect the operator from radiation leakage.
• EXTERNAL BACKSCATTER SHIELDING: The backscatter shield signifcantly reduces the amount of radiation being reflected.

Due to unique efficiencies in Carbon Nano Technology, EzRay Air Vet has almost a 75% reduction in cooldown time between shots when compared to leading competive devices. This allows users to spend less time waiting for their x-ray to be ready and more time in treatment, diagnosis and patient.

EzSensor Vet & acquisition software delivers superior diagnostic images essential for successful diagnosis, endodontic treatment. Our CMOS technology provides maximum diagnostic information for facilitate better treatment plans and clinical outcomes. Featuring unparalleled durability, image quality and intuitive EzSensor software, increased workflow efficiency and diagnostic accuracy are achieved at a low cost of ownership.Round corners, smooth edges, and a reinforced fiber optic cable connection are the results of design that focuses on patient comfort and product durability.

• Superior image obtained with CMOS technology
• Slim design for easy positioning
• IP68 water and dust protection
• Fiber optic cable connector

ParameterDescription

Detector Structure: Low Noise Hybrid CMOS

Dimensions (W x L x T): EzSensor 2.0 (1.24 x 1.69 x 0.19 inch)

Pixel Size: 29.6µm

Theoretical Resolution: 16.8 lp/mm

Active Pixel Array: 1216 x 878 pixels Waterproof: IP68

Available sizes: 1.0, 1.5, & 2.0
