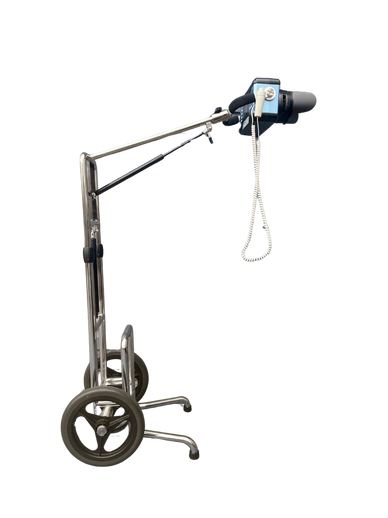

The Explorer Portable X-ray Machine
Pair with our battery powered or plug-in x-ray generators
Our Explorer portable X-ray machine offers unparalleled convenience and flexibility: choose from our battery powered or plug-in power x-ray generators.
A compact and ergonomic design, it streamlines workflow, reduces patient discomfort, and expedites crucial medical decisions, ultimately improving overall patient care and outcomes.
With a small footprint, and lightweight materials, clinical users will immediately notice the efficiency the Explorer cart delivers. Its built-in capability offers a more effective way to x-ray. Increase the Explorer’s potential by adding one of our digital acquisition packages creating the ultimate digital portable x-ray machine.
Dimensions (folded): 52” tall x 23” wide x 27.5”
Dimensions (extended): 79" focal spot to the floor/37" w/front leg extended
Weight: (w/o generator): 55lbs
Wheels: 12" solid rubber/ 3" swivel caster (front)
Raw Material: Aluminum (USA)
Paint Colors: Bone white - standard
Custom Colors: over 1000 available
Detector Holder: Accommodates 14x17" detector w/encasement
Laptop holder (optional): Accommodates up to a 14" laptop w/dual positioning
Optional winch strap
Pair our EXPLORER Low Profile cart with ANY Poskom battery X-ray Generator for the ultimate in portable x-ray capability! See below for more information
Poskom X-ray Generators
Poskom PXM-20BT PLUS Battery Powered Portable X-ray Generator
AC POWERED 110/220V Poskom PXM-20 BT PLUS Hybrid Battery-Powered Portable X-Ray machine is one of the most compact and lightweight battery-powered, cordless, portable X-ray ( portable xray) units in the market today. Utilizing revolutionary micro technology and a powerful Lithium-Ion Battery, the PXM-BT portable delivers the power up to 3000 mAs without recharging the battery.
No external power source is required for producing radiographic images PXM-BT generators are designed with state-of-the-art Microprocessor Controls and PROM memory for preset APR programming, battery-status readouts and mAs energy-level displays including the dual laser collimator.
The Lithium-Ion battery is rechargeable and has a very long lifecycle (of over 5 years) without losing power efficiency. Recharging time is approximately 2-3 hours.
Features:
Generator Type: Battery Powered HF Generator Micro-processor controller
Inverter Output (KW): 1.6KW, 20mA@80kV
kV Range: 40-100kV, 1kV increment
mA Range: 12 to 20mA, Variable
mAs Range: .4-50 mAs, 32 selections
Console & Display: kV & mAs LED Display, Ready & Exp. LED indicator, Collimator & Laser SW, Preset technique SW, Reversible LED readout SW
Controller Software: PROM memory :15 APR selector, Remote Control program, Programmable Laser beam & Collimator lamp, Battery Charger LCD indicator, Stand-By mode & Dimmer
X-ray Tube: Fixed Anode Type, Focal Size: 1.2mm, Anode Heat Capacity: 20 KHU
Battery Features: Rechargeable Lithiu,-Ion Type, Capacity: 1,600 mAs, Charger: 55 Watt / 110VAC, Charging Time: 3.5 hrs, Power requirement: 29.4V / 1.5A
Dual Laser: Programmable controller, 26″ Auto Focal point Dual Laser
Laser Collimator: Manual: collimator 4 blades, Programmable 10 sec. timer
Auto Compensation: Battery Voltage comp. ± 10%
Charger Power Requirement: Auto Switch, 110/220AC, 50/60 Hz
Net Weight: 21.6 lbs
Size: 13.6″x9″x6.8″
Poskom PXM-40BT PLUS Battery Powered Portable X-ray Generator
AC POWERED 110/220V Poskom PXM-40BT PLUS Hybrid Battery-Powered Portable X-Ray machine is one of the most powerful battery-powered, cordless, portable X-ray (portable xray) units in the market today. Utilizing revolutionary micro technology and a powerful Lithium-Ion Battery, the PXM-40BT portable delivers the power up to 3000 mAs without recharging the battery.
No external power source is required for producing radiographic images PXM-BT generators are designed with state-of-the-art Microprocessor Controls and PROM memory for preset APR programming, battery-status readouts and mAs energy-level displays including the dual laser collimator.
The Lithium-Ion battery is rechargeable and has a very long lifecycle (of over 5 years) without losing power efficiency. Recharging time is approximately 2-3 hours.
Features of PXM-40HF Plus system:
- Generator Type: Battery Powered HF Generator Micro-processor controller
- Inverter Output (KW): 2.4KW, 30mA@80kV
- kV Range: 40-100kV, 1kV increment
- mA Range: 16 to 35mA, Variable
- mAs Range: .4-100 mAs, 35 selections
- Console & Display: kV & mAs LED Display, Ready & Exp. LED indicator, Collimator & Laser SW, Preset technique SW, Reversible LED readout SW
- Controller Software: PROM memory :21 APR selector, Remote Control program, Programmable Laser beam & Collimator lamp, Battery Charger LCD indicator, Stand-By mode & Dimmer
- X-ray Tube: Fixed Anode Type, Focal Size: 1.2mm, Anode Heat Capacity: 20 KHU
- Battery Features: Rechargeable Lithium-Ion Type, Capacity: 3,200 mAs, Charger: 110 Watt / 110VAC, Charging Time: 3.5 hrs, Power requirement: 58.8V / 1.5A
- Dual Laser: Programmable controller, 26″ Auto Focal point Dual Laser
- Laser Collimator: Manual: collimator 4 blades, Programmable 10 sec. timer
- Auto Compensation: Battery Voltage comp. ± 10%
- Charger Power Requirement: Auto Switch, 110/220AC, 50/60 Hz
- Net Weight: 30.9 lbs
- Size: 14″x9″x8″
Introducing the Airray 20: The Lightest Battery Powered Portable X-ray Generator in the World!
- Lightweight at only 11.9lbs and quick to set up – centrally balanced unit so very easy to maneuver and hold still
- 1.6 kW output, 90kV/20 mA
- Lithium-ion Polymer rechargeable batteries
- High frequency for high quality image production
- Adjustable Collimator Light and Laser dots for Film Focal Distance – activate by hand switch
- No need to remove battery to charge it
- Multiple ways to charge: either direct cable to generator, or in its box using 12 V (in car) or 240 V
- 10 APR settings
- Includes a corded hand switch to shoot exposures
- USB-A port for Bluetooth communication
- Can fully recharge in 1.5-2 hours
- LCD display on top and rear of unit
- Can use generator while charging
- Ultimate mobile x-ray machine
Poskom PXP-40HF Plug-in Portable X-ray Generator
Features of PXP-40HF Plus system:
- Ultra light weight (27 lb) and compact size
- High frequency generator: 100Khz, HF inverter type
- X-Ray output 35 mA / 100 KVP
- mAs range: 0.4 to 100 mAs
- Affordable price for veterinary practitioner
- Auto-line voltage compensation makes x-ray output constant without influence of a line power fluctuation
- Built-in Halogen collimator and laser pointer
- Scale measure for SID (Source to Image Distance)
- Flat touch panel digital display
- Toggle switch for LED read-out reverse
- Power requirement: 112/220 VAC, 50/60 Hz
- Standard accessories: Power cord cable, exposure hand switch, metal carrying case and operator's manual
- The ultimate portable x-ray machine
SourceRay Portable X-ray Machine
Source-Ray SR-130 Portable X-Ray Machine
The Source-Ray SR-130 (SR130) portable x-ray machine provides higher power, state of the art technology, system reliability
and low maintenance, all in a small footprint,
lightweight package.
The SourceRay SR-130 mobile x-ray machine was designed with agility in mind.
It’s compact, lightweight construction makes
it easy for the operator to move the system
effortlessly wherever it may need to go.
Delivering maximum mR/mAs, the SR-130
produces 3 kW of power that provides hospital
quality imaging, performed anywhere, anytime a
Portable X-Ray System is transported to a patient.
GENERATOR: High frequency resonant inverter - 3.0 kW
Input Voltage: 115/230VAC, 50/60hZ
kVp Range: 40 - 100 kVp, adjustable in I kV increments -
closed loop regulation
mA Range: Fixed, 15 mA and 30 mA - closed loop regulation
mAs Range: 0.15 - 120
Exposure Time: 0.01 - 4.00 seconds
SYSTEM WEIGHT: 100 lbs. / 45 kG
Source-Ray PowerMax 1260 Portable X-ray Machine
The Source-Ray PowerMax-1260 (SR1260) portable x-ray machine combines lightweight maneuverability with maximum power, making it suitable for various applications. In addition, with high reliability and low maintenance, the state-of-the-art system offers an easy upgrade path for clinical sites transitioning to digital imaging making it a dynamic mobile x-ray machine.
Radiographic Applications
- Used in hospitals, medical centers, clinics, sport complexes, nursing homes, home health care, correctional facilities & military applications.
Generator: High frequency Resonant Inverter Microprocessor controlled.
kVp Range: Extremity Range – Adjustable in 1kVp steps.
mA Range: 15 – 60 Selectable. Constant mA – Independent of kV or Time.
mAs Range: Optimum Range – Provides quality soft tissue & bone resolution.
Exposure Time: 96 steps – Provides accurate technique settings.
X-ray Tube:
- Stationary anode, 15° Target, 1.2 fs 30,000 Heat Unit Storage
- 1.2 fs 30,000 Heat Unit Storage. Provides superior image quality & heat storage.
Collimator: 200° Rotation – High output LED lamp, Laser Indicators.
Exposure Switch: 2 Position, Prep / X-ray, 15' Cable.
SYSTEM WEIGHT: 110 lbs. / 49 kG
Source-Ray SR-115 Portable X-Ray Machine
The Source-ray SR-115 (SR115) portable x-ray machine provides the maximum power obtainable from a line-powered portable for its size. Expect high system reliability and low maintenance with this lightweight unit, all in a small footprint. The Source-ray SR-115 is ideal mobile x-ray machine for imaging in small rooms or areas with limited access.
Radiographic Applications
- Portable X-ray Providers, sport complexes, nursing homes, & home health care.
Generator: High frequency Resonant Inverter Microprocessor controlled
kVp Range: 40kV-100kV Extremity Range – Adjustable in 1kVp steps.
mA Range: 15 Fixed. Constant mA, Independent of kV or time
mAs Range: 0.5-60mAs: Optimum Range – Provides quality soft tissue & bone resolution.
Exposure Time: 96 steps – Provides accurate technique settings.
X-ray Tube:
- Stationary anode, 15° Target, 1.0 fs 25,000 Heat Unit Storage
- Provides superior image quality & heat storage
Collimator: 200° Rotation – High output LED lamp, Laser Indicators.
Exposure Switch: 2 Position, Prep / X-ray, 15' Cable.
SYSTEM WEIGHT: 80 lbs. / 36 kG
