Equine & Large Animal X-Ray Generator Solutions

---

The world's best selling battery generator! The Poskom Vet BT20.....few even compare.

Weight: 15lbs

Output(kW): 1.6kW

kV Range per 1kV step: 50-80kV

mA Range/No. of step: 8, 10, 15, 20

mAs Range/No. of step: 0.4-20/25

Tube Focal Spot(mm): 1.2 x 1.2mm

Target Angle: 19*

Dual Laser: Pointer Standard

Battery Charger: 16.8V/1.5A

Charging Time: 3.5 hours

*The ultimate in equine x-ray

Low-dose X-ray

Wireless switch (Bluetooth)

Distance sensor (Laser guide beam)

High-resolution LCD control panel

Tube kV: 50 ~ 90 kV

mA: 8 ~ 10 mA

mAs: 0.4 ~ 16 mAs

Output Power 720 W

Manual Type, Double Slit

Collimator

≤ 5 x 5 @ 100cm SID

≤ 43 x 43 @ 100cm SID

Weight ≤ 3.5 kg (7.7lbs)

Equine x-ray machine

Off to the Races!

iRay Introduces the World’s First Flexible TFT CsI X-ray Detector Specifically Designed for Equine Imaging.

Cutting Edge Technology

Glass-free, Flexible Substrate with CsI

scintillator

Industry Leading 100 µm Resolution for

the Highest Diagnostic Confidence

Robust and Light Weight

Only 4.4 lbs (2 kg)

Withstands 4ft Drop and

7mm

Powerful Water Jets with IP67 Rating

See More with Narrow Borders

Only 7-10 mm Borders on Three Sides for

Optimal Hoof and Stifle Images

Fast Workflow with Instant Images

Cycle time between images < 3.5 sec.

Long Lasting Battery

Up to 8.5hr in Battery Saving Mode

Glass-free design

Weight: 5.7lbs

Detector Type: Amorphous Silicon

TFT Scintillator: Cesium Iodide (CsI)

IP56 Rating - protected against dust & liquid

Active Detector Matrix: 3,040 × 3,036 pixels

Effective Area: 425.6 mm × 425.04 mm

Pixel pitch140 um

A/D Conversion: 16 bits

Spatial Resolution: 3.57 lp/mm

DQE: 76% (0 lp/mm, Typical)

MTF: 86% (0.5 lp/mm,Typical)

Image Acquisition:  Wireless
(802.11 a/b/g/n & ac)

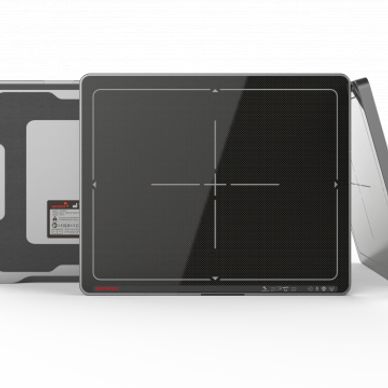

• 10HQ701G flat panel detector
• 140㎛ pixel size
• 16bit A/D conversion
• IP68 Rating - dust & liquid proofed
• Magnesium & Carbon-fiber Body
• 4 lbs with battery
• Max. Uniform Load : 400kg / Max. Point Load : 200kg
• Raw Image in 2 sec.(Wireless)
• LG DXD digital x-ray & digital radiography

• High-performance digital X-ray detectors designed for ease of use and safe transport.
• Durable construction for stable long-term performance. Flexible AED allows advanced diagnostic technology to be used with all types of X-ray systems.
• Cesium iodide crystals grown in-house and hermetically sealed in packaging. More efficient low dose care with CareRay's patented imaging technology.

Equine Tunnels offer superior DR panel protection when radiographing the hoof. This tunnel features four rubber feet that keep the DR panel raised up off the floor and fully protected in the dirtiest environments. A must have for any equine x-ray.

• Rugged and lightweight construction is rated up to 1K lb. of direct weight
• Slip-resistant tube side protective cover
• Positioning slot for lateral projections
• Positioning slot for AP projections
• Tunnel with solid bottom and four rubber feet protects the panel on all four sides during weight bearing exams
• Available in 17x17in., 14x17in., 10x12in. and 24x30cm
• Built-in carrying handle for transport and positioning
• Configurable slots for use with or without a protective case

The Mobile DR Panel Holder for equine x-ray is a lightweight protective case for your expensive flat panel detector. Available in a variety of sizes, this holder features a single ergonomic handle on the long axis, providing a sure grip on your detector which reduces the chance for drops and fatigue. The case is milled from a single piece of HDPE yielding a durable and easy to clean, hand-made cover. The bidirectional Twin-Lock™ system keeps the panel safe and secure and will never fall out under regular use.
